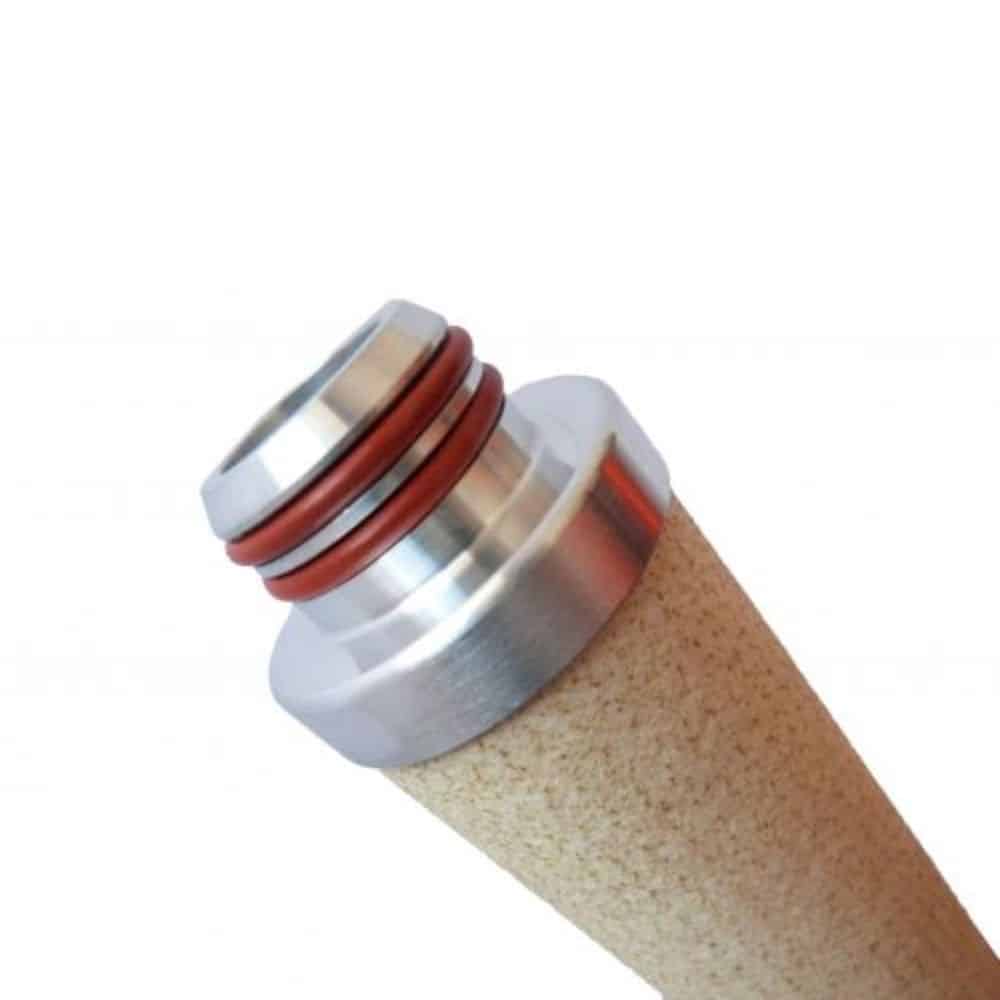

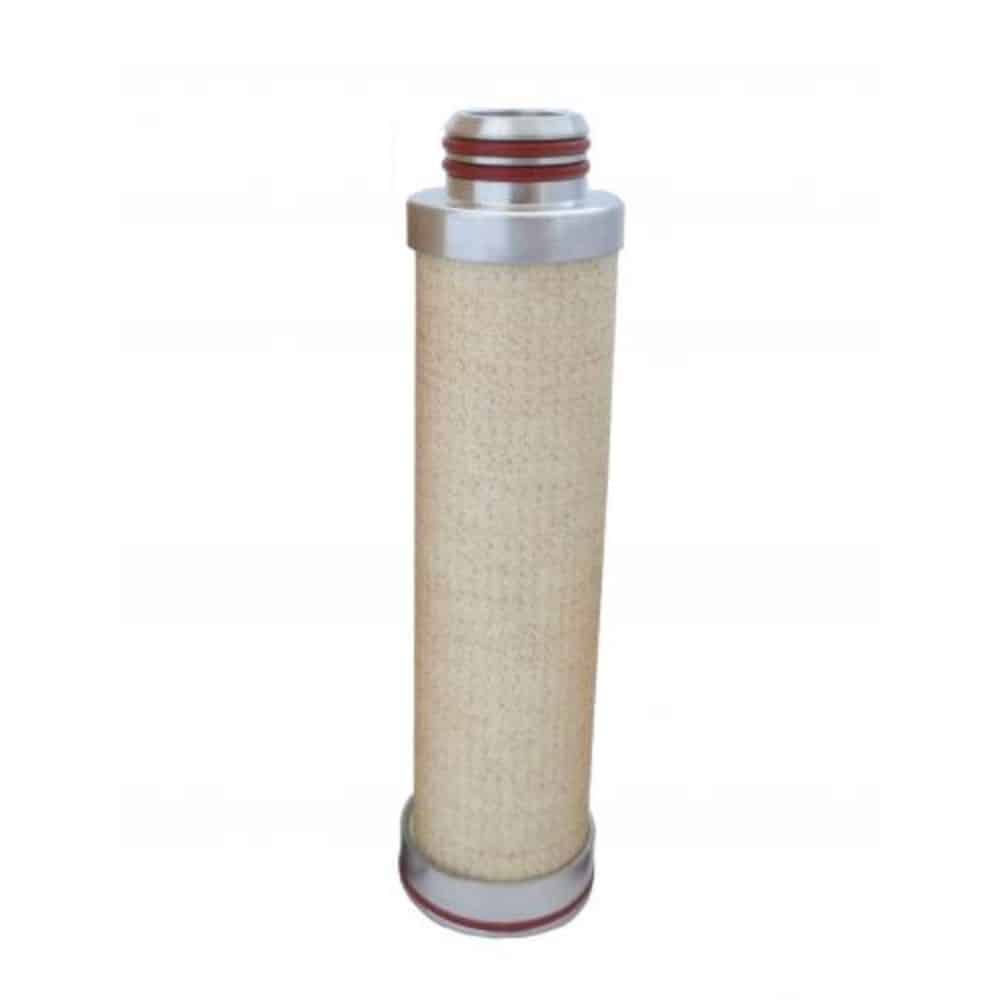

Walker Filtration manufactures a unique range of 150 psig (10 barg) high-temperature filters using machined or diecast aluminum components. This range offers significant cost reductions over our high-temperature stainless steel versions while offering many design features. There are eleven models in this range from 1/4″ to 3″ pipe connections with flow rates up to 1600 SCFM (2720 Nm^3/h) at 100 psig (7 barg). All models feature the Walker push-in filter element design with double O-ring seals for extra security, and are available in 1 micron grade particulate removal, this being the optimum particle removal size for installation after heat reactivated type desiccant dryers.
Particulate Filter Packages

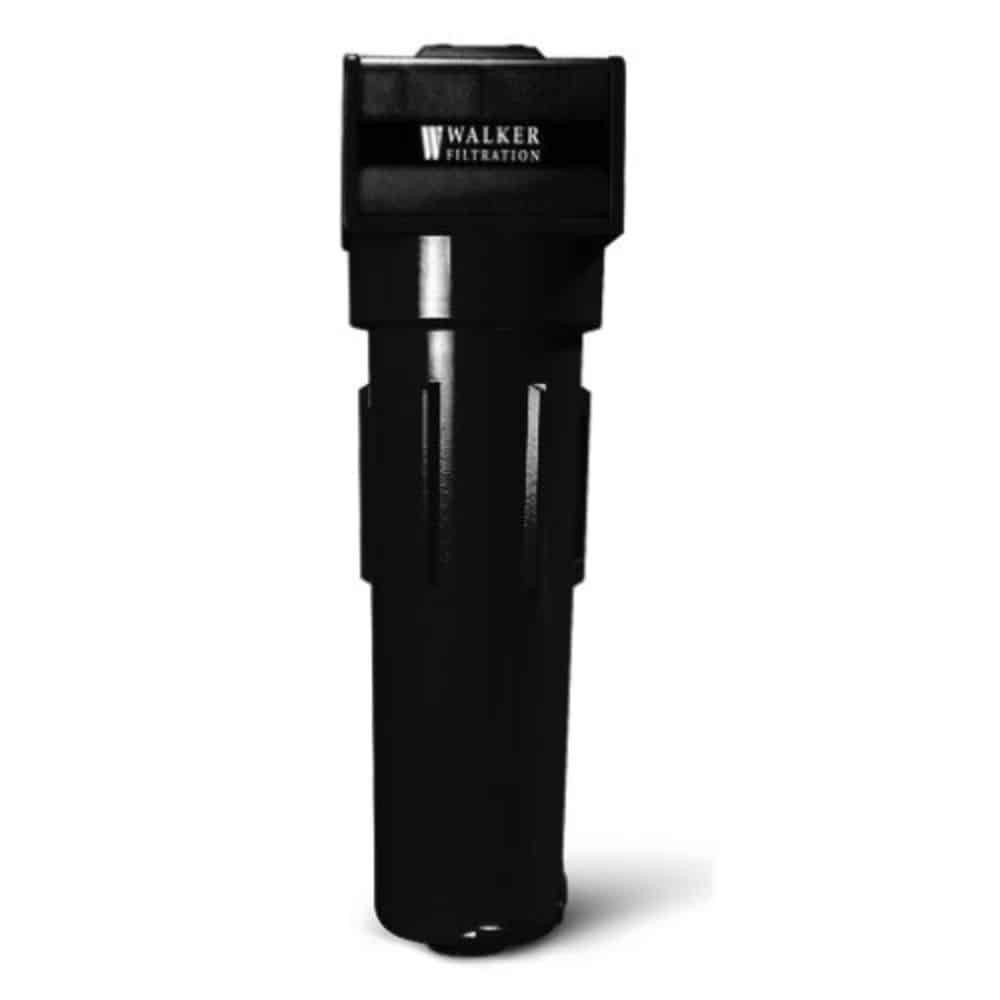

Walker Filtration 50HT25RX5 WFH Series High Temperature Dryer Dust Filter
$0.00
Walker Filtration manufactures a unique range of 150 psig (10 barg) high-temperature filters using machined or diecast aluminum components. This range offers significant cost reductions over our high-temperature stainless steel versions while offering many design features. There are eleven models in this range from 1/4″ to 3″ pipe connections with flow rates up to 1600 SCFM (2720 Nm^3/h) at 100 psig (7 barg). All models feature the Walker push-in filter element design with double O-ring seals for extra security, and are available in 1 micron grade particulate removal, this being the optimum particle removal size for installation after heat reactivated type desiccant dryers.
| Weight | 1.3 lbs |
|---|---|
| Dimensions | 2.48 × 2.48 × 5.71 in |
| Brand | |
| Connection/Pipe Size (in) | 1/4" |
| Micron Rating | 5.0 Micron |
| Flow Rate (SCFM) | 15 |
| Associated Element Part #(s) | HT1535RX5 |
| Number of Elements Required | 1 |
