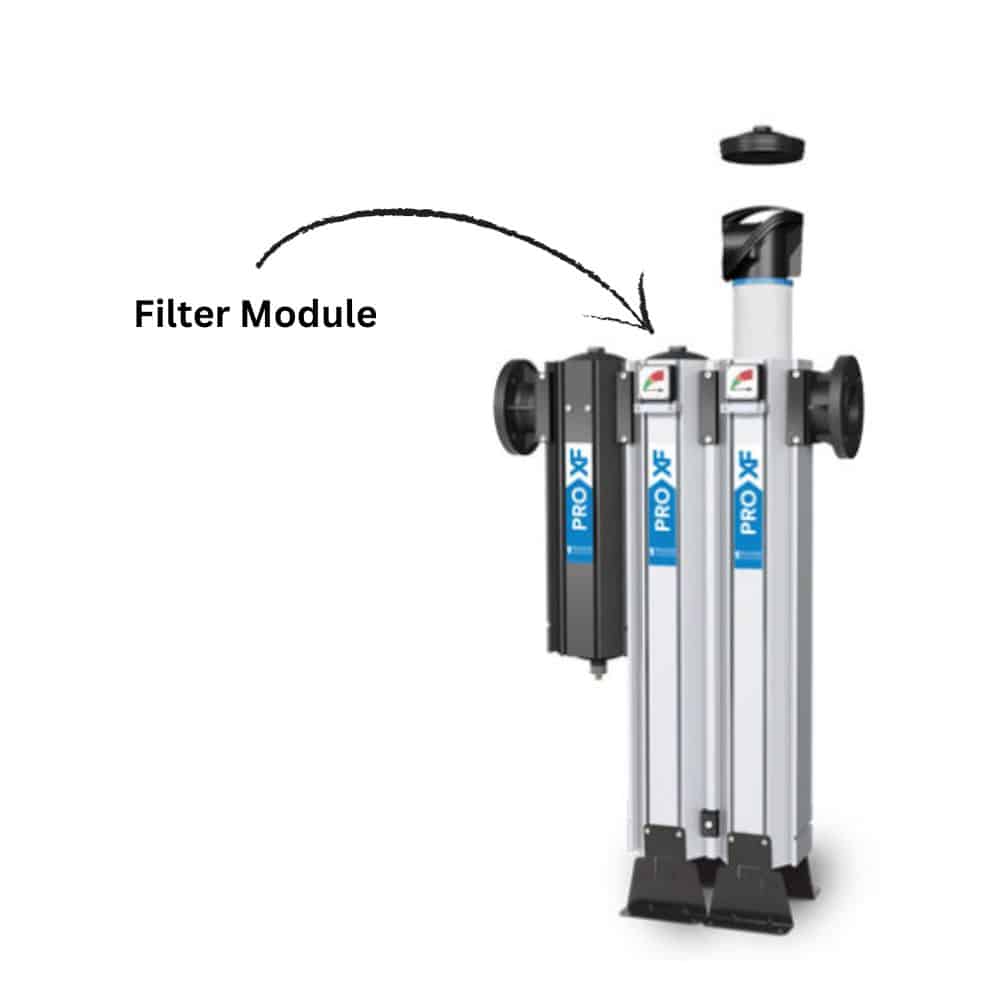

Walker Filtration XFM071AC PRO XF Series Module

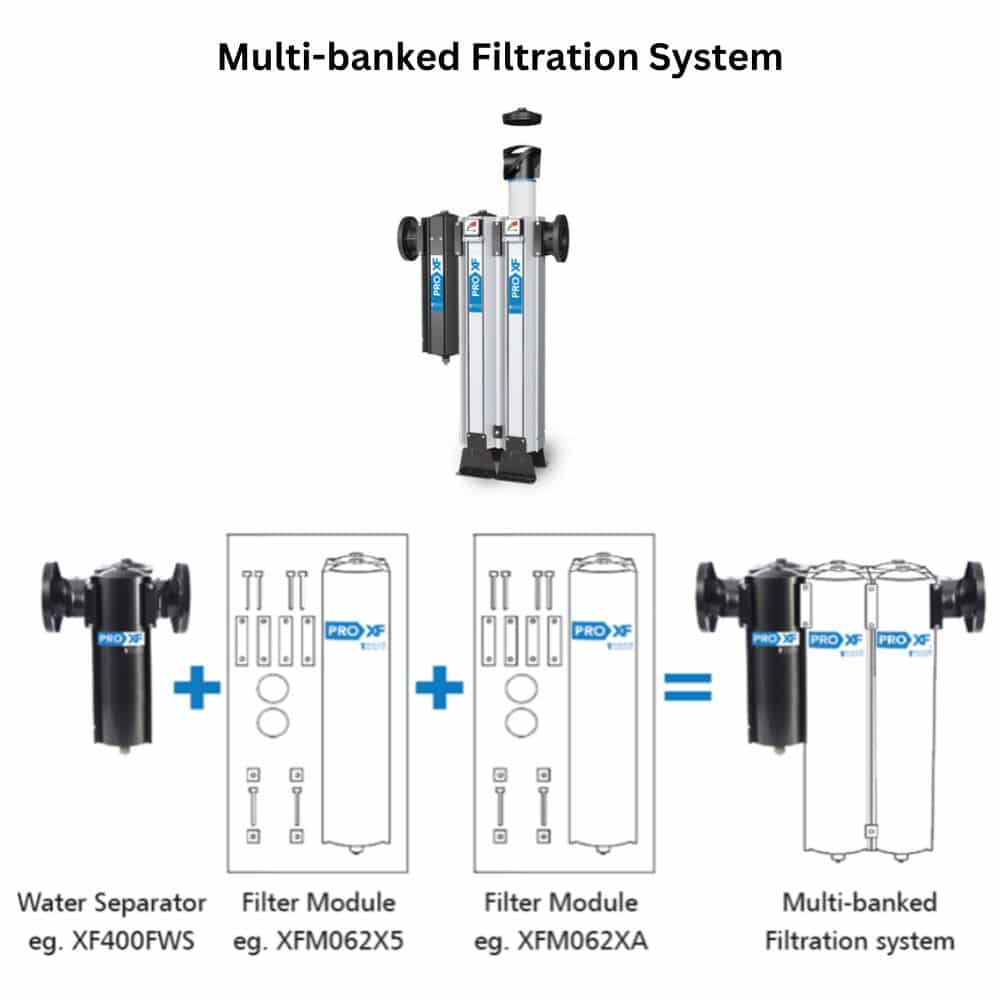

Walker Filtration’s PRO XF high efficiency compressed air filters feature an innovative modular design and provide a flexible, reliable, and compact compressed air Filtration solution. Designed for high flow applications and operating pressures up to 232 psig (16 barg), PRO XF takes a revolutionary approach to the traditional fabricated flanged market – providing a compact and flexible modular design that is ideal for use in multi compressor installations and skid based packages. Available as individual threaded and flanged filters, by integrating a filter ‘module’ with slim-line connectors, the entire package is ideal for a multi-banked solution. PRO XF’s space efficient design is up to 65% lighter and 45% smaller when compared to comparative fabricated models. The range includes all coalescing, particulate, vapor and dust filtration grades, and Water Separator models, providing a comprehensive compressed air Filtration solution for high flow applications with flow rates from 700 to 3000 scfm (1189 to 5097 Nm^3/h). Ease of installation and maintenance has also been a prime consideration in the design of PRO XF, minimizing system downtime associated with servicing and maintenance and providing hugely improved operating efficiencies. PRO XF is designed to deliver optimum performance in line with the highest standards of air purity, meeting quality standard ISO 8573-1:2010, providing a reliable compressed air Filtration solution, for use in industrial applications. Filter Modules are supplied without threaded or flanged connection ports and include one set of slim-line connectors to allow multi-banking of filter housings. A Complete Filter or Water Separator must be purchased alongside Filter Module Units for multi-banking.
