| Weight | 5.01 lbs |
|---|---|
| Solenoid Valve Pipe Size | 1-1/4 in. NPT |
| Solenoid Valve Orifice Size | 1-1/8 in. |
| Flow (Cv) | 15 |
| Voltage & Frequency | 110 Volts AC with 50 Hz |
| Body Material | Brass |
| Flow (Kv) | 2.97 |
| Function | 2 way – 2/2 Normally Closed |
| Valve Actuation | Solenoid |
| Media | Air, Inert Gas |
| Coil Class | HT |
| Order Code | 20330 |
| Kit Number | 304392 |
| Coil Number | 238810-032-D |
| Ambient Temperature | 32 – 125 °F |
| Fluid Temperature | 32 – 210 °F |
| Watt Rating | 10.1 W |
| Lead Length | 18 inch |
| Carton Note | 1-1/4 X 1-1/8 2NC BRASS 10.1/H AC |
| Seating Elastomer | PTFE |
| Mounting Direction | Any |
Solenoid Valves

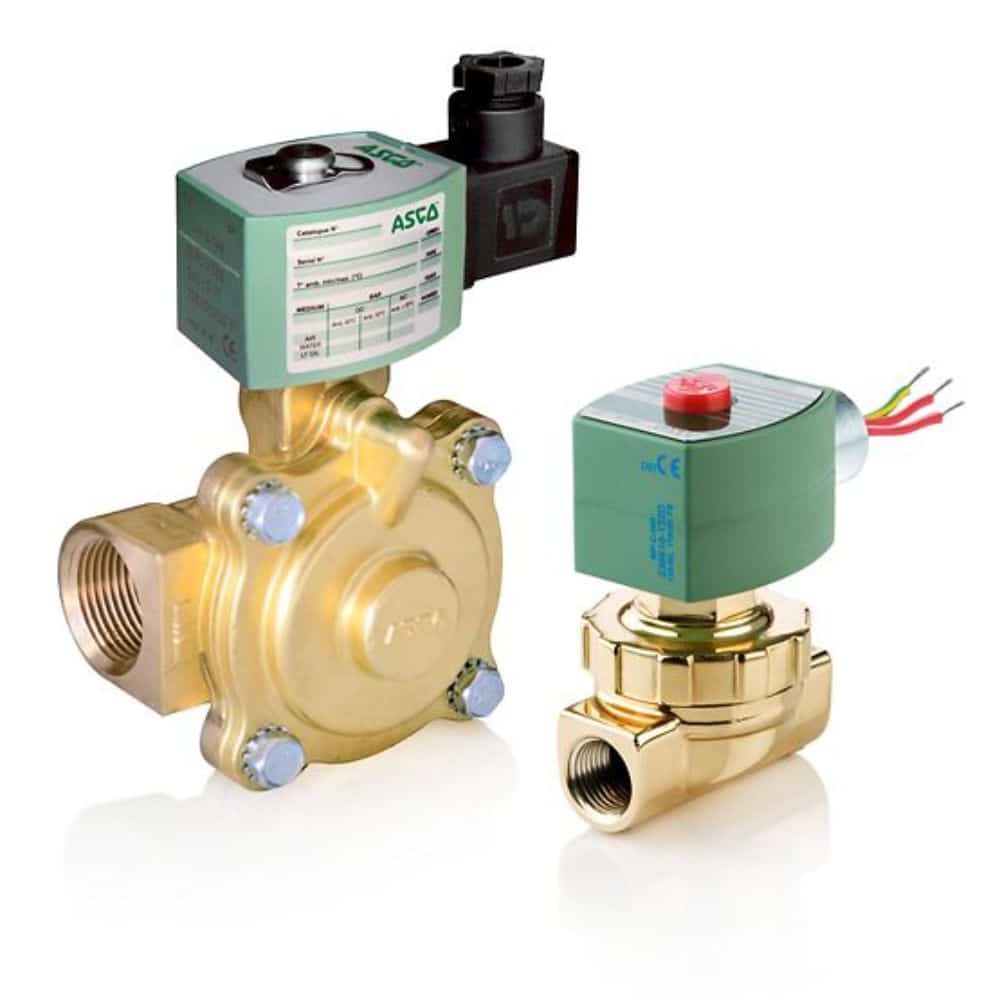

ASCO™ 8220G027AC110/50D, 1-1/X 1-1/ 2NC BRASS 10.1/H W
$87.20
The ASCO Series 220 steam and hot water valves provides up to 60% more flow than competitive offerings. That means a 3/4-inch valve flow from ASCO equals the competitors 1-inch flow. The Series 220 floating PTFE diaphragm provides positive sealing and improved durability – up to four times longer than other valves. Its threaded bonnet is easy to remove for quick inspection and serviceability reducing downtime and maintenance costs.
