| Weight | 1.39 lbs |
|---|---|
| Solenoid Valve Pipe Size | 1/2 in. NPT |
| Solenoid Valve Orifice Size | 3/8 in . |
| Flow (Cv) | 2.5 |
| Voltage & Frequency | 110 Volts AC with 50 Hz |
| Body Material | Brass |
| Flow (Kv) | 2.16 |
| Function | 2 way – 2/2 Normally Closed |
| Valve Actuation | Solenoid |
| Media | Steam |
| Coil Class | HT |
| Order Code | 21401 |
| Kit Number | 304030 |
| Coil Number | 238410-032-D |
| Ambient Temperature | 32 – 125 °F |
| Fluid Temperature | 32 – 353 °F |
| Watt Rating | 6.1 W |
| Lead Length | 18 inch |
| Carton Note | 1/2 X 3/8 2NC BRASS 8.1/H AC |
| Seating Elastomer | PTFE |
| Mounting Direction | Any |
Solenoid Valves

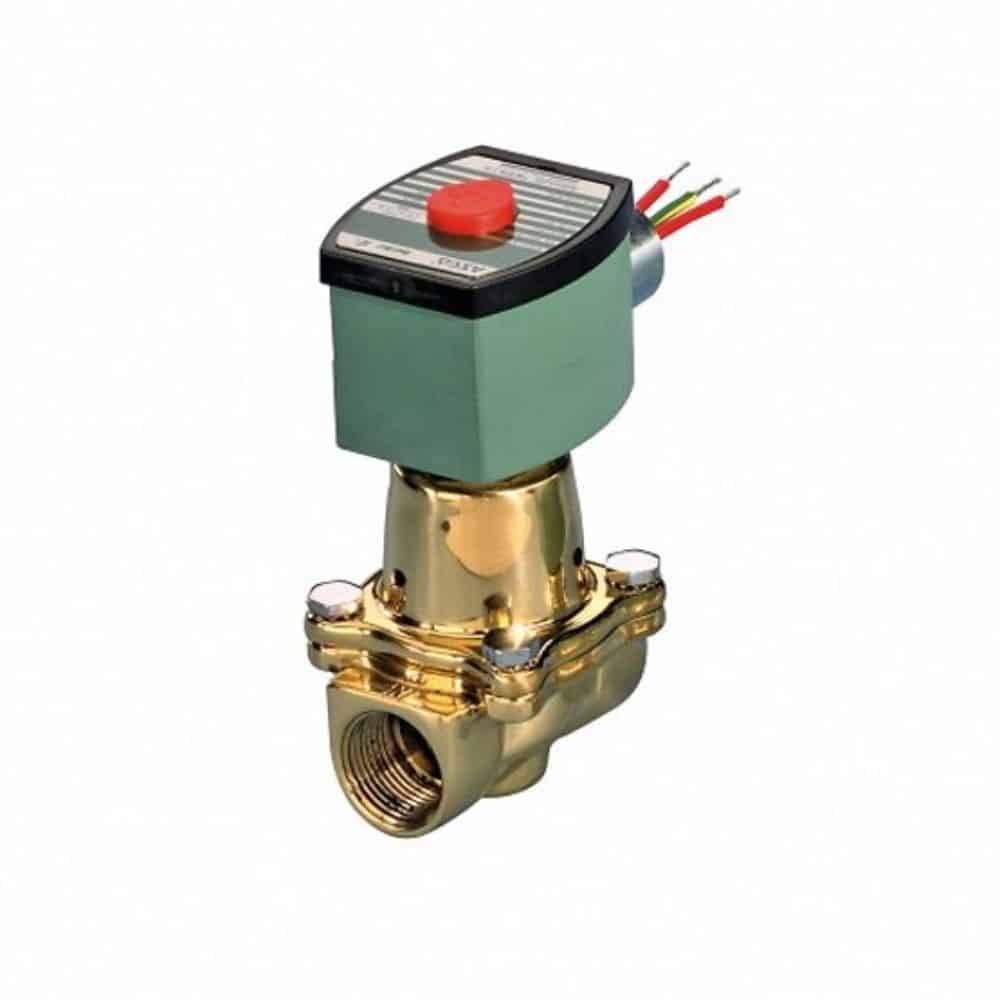

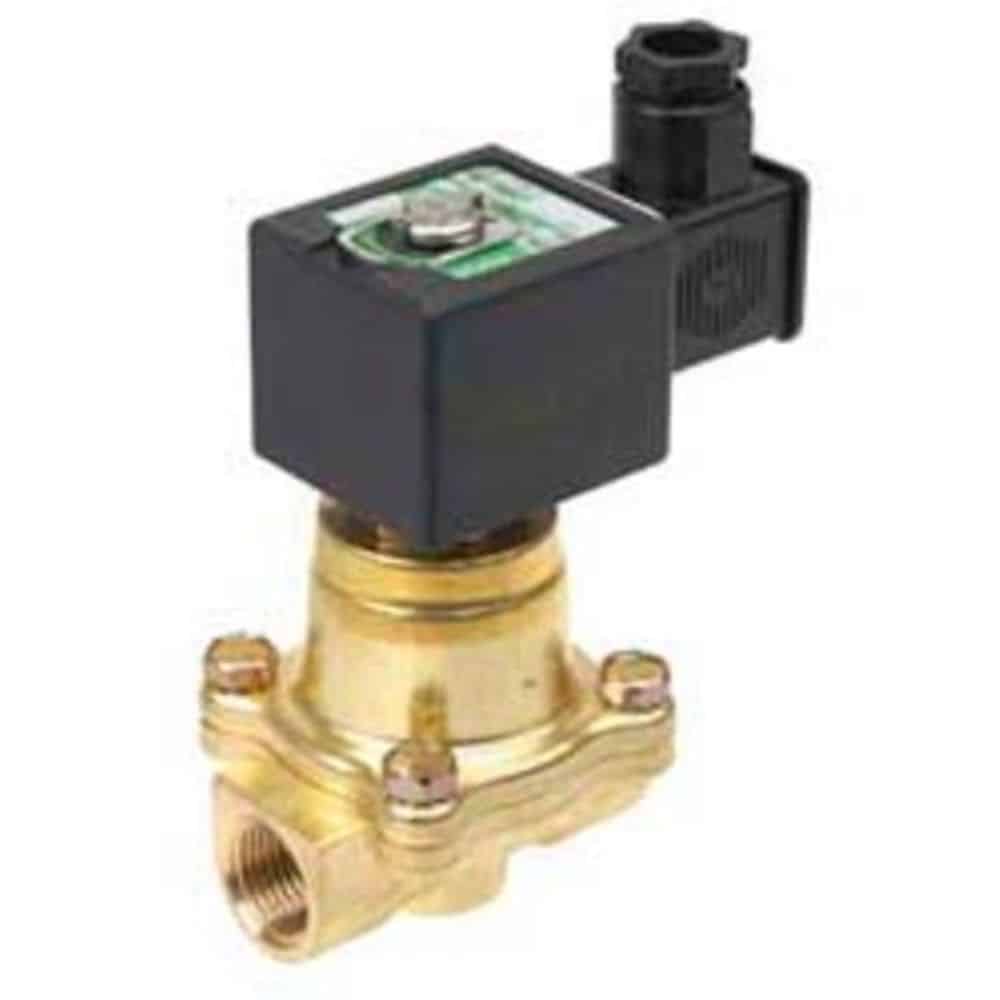

ASCO™ 8222G076AC110/50D, 1/2 X 3/8 2NC BRASS 6.1 /H W
$333.60
ASCO 222 Series solenoid valves are designed for high-temperature applications found in commercial laundry and kitchen equipment, molding, steam atomization sterilizer, and autoclave applications. The pilot-operated valves come with a Y-body floating piston or diaphragm design for durability and reliability.
