| Weight | 1.9 lbs |
|---|---|
| Solenoid Valve Pipe Size | 1/4 in. NPT |
| Solenoid Valve Orifice Size | 5/16 in. |
| Flow (Cv) | 1.5 |
| Voltage & Frequency | 110 Volts AC with 50 Hz |
| Body Material | Brass |
| Flow (Kv) | .29 |
| Function | 2 way – 2/2 Normally Closed |
| Valve Actuation | Solenoid |
| Media | Air, Inert Gas |
| Coil Class | FT |
| Order Code | 20369 |
| Kit Number | 302313 |
| Coil Number | 238610-032-D |
| Ambient Temperature | 32 – 125 °F |
| Fluid Temperature | 32 – 200 °F |
| Watt Rating | 10.1 W |
| Lead Length | 18 inch |
| Carton Note | 1/4 X 5/16 2NC BRASS 10.1/F AC |
| Seating Elastomer | NBR |
| Mounting Direction | Any |
| Operating Pressure (Air) | 10 – 750 PSI |
| Operating Pressure (Water) | 10 – 750 PSI |
| Operating Pressure (Light Oil) | 10 – 750 PSI |
| Holding Current (VA) | 25 |
Solenoid Valves

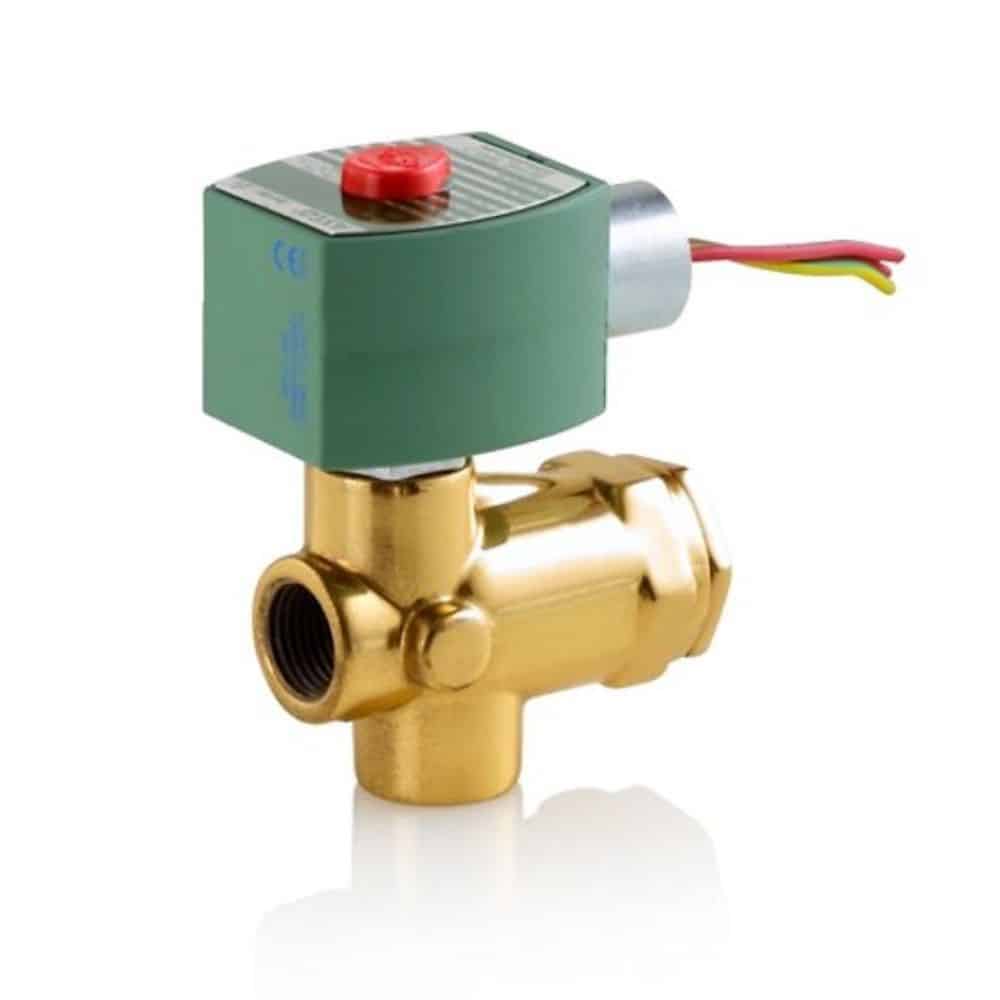

ASCO™ 8223G021AC110/50D, 1/4 X 5/16 2NC BRASS 10.1/F W
$305.60
The ASCO 223 Series is a solenoid pilot-operated valve designed for high-pressure applications such as car washes. The rugged valve has a unique piston construction built to withstand high-flow pressures up to 1500 psi.
