Solenoid Valves
ASCO™ EV8327G042DC24/DCD, PILOT VALVES, 1/4 X 1/4 3U STAINL11.6/F W
$816.00

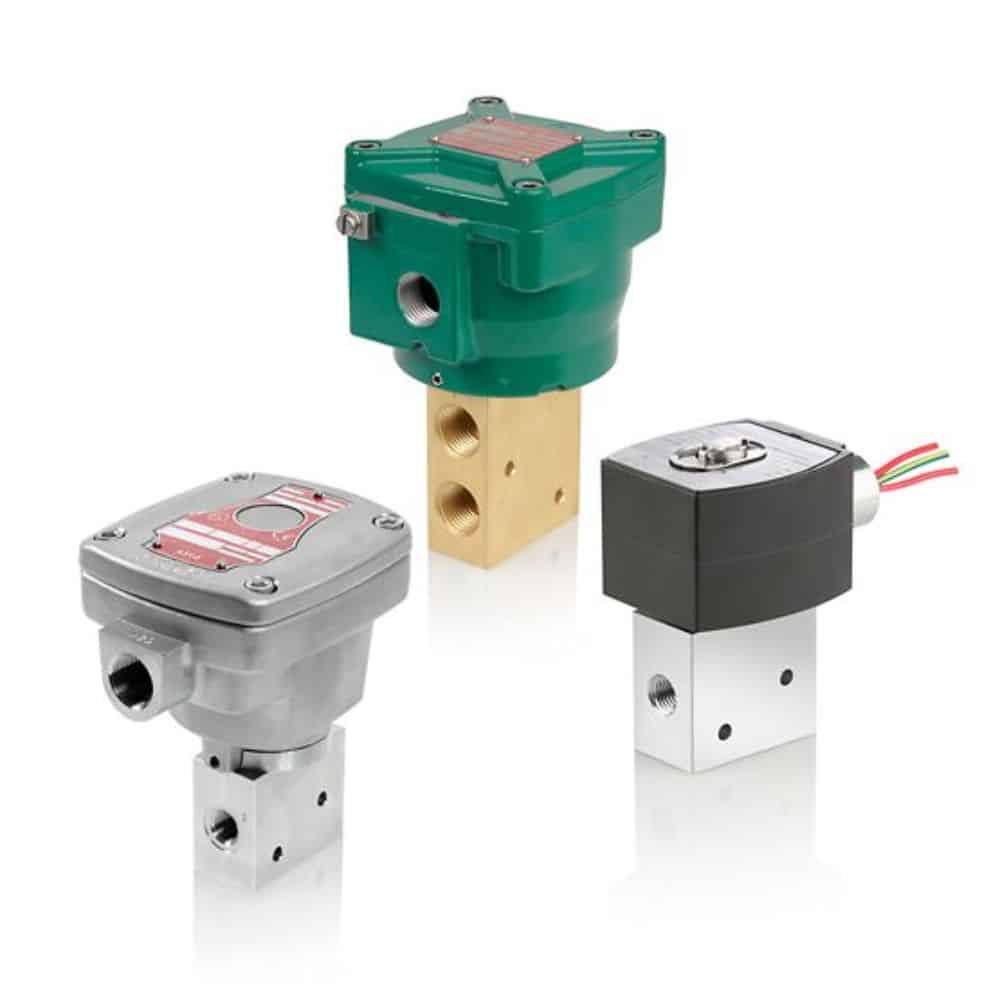

The ASCO 327 Series is a line of high-flow piloting valves requiring zero minimum operating pressure. Its balanced poppet construction permits high flows at minimum power levels, making it ideal for power plants, refineries, and chemical processing facilities. The valve’s PTFE rider rings and graphite-filled seals reduce friction and eliminate sticking to provide exceptional service life.
| Weight | 2.25 lbs |
|---|---|
| Solenoid Valve Pipe Size | 1/4 in. NPT |
| Solenoid Valve Orifice Size | 1/4 in . |
| Flow (Cv) | 0.49 |
| Voltage & Frequency | 24 Volts DC |
| Body Material | Stainless Steel |
| Flow (Kv) | .42 |
| Function | 3 way – 3/2 Universal |
| Valve Actuation | Solenoid – Direct Acting |
| Media | Air, Inert Gas |
| Coil Class | FT |
| Order Code | 21681 |
| Kit Number | 123670 |
| Coil Number | 274714-006-D |
| Ambient Temperature | -4 – 131 °F |
| Watt Rating | 11.6 W |
| Lead Length | 18 inch |
| Carton Note | 1/4 X 1/4 3U S.S. 11.6/F DC |
| Seating Elastomer | FKM |
